Product, Services & Solutions
Rigging
Franklin Offshore delivers expert rigging services for a wide range of onshore and offshore needs: lifting and securing equipment, machinery, vessels, and structures (including heavy platform lifts), cargo seafastening, and vessel towing. We handle all rigging equipment provision, plus offer load testing, spooling, and wire rope termination for efficient and safe operations.We operate a large, high-volume rigging shop complete with a range of hydraulic rigging vices and swaging machines. Using hydraulic wire rope swaging machines, we can terminate wire ropes from 2mm diameter to a massive 128mm. All slings are issued with certificates for compliance with each client’s specific requirements.

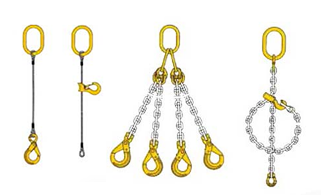

Slings
A core rigging component used for lifting

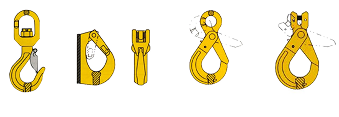

G80 Chain & Fittings
High-grade chain and associated hardware
Shackles
Connecting links
Sockets
Terminating wire ropes

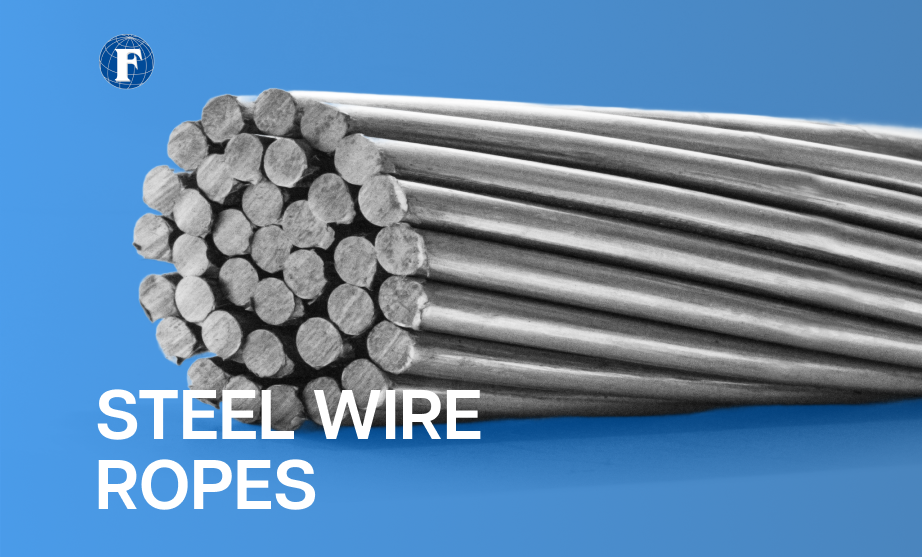

Steel Wire Rope
We have the right product for your specific use, from lifting & rigging equipment to high-performance cranes and riser tensioner cables. These include: 6- and 8-strand, non-rotating | non-compacted, non-rotating | compacted, stainless steel, swaged forestry ropes and branded special wire ropes.
A & R Winch Ropes
Construction
Drilling Lines
Offshore Pedestal / Crane Ropes
Telescopic Mobile / Crane Ropes
Anchor Lines
Barge Crane Hoist Ropes
Filipino Ropes
Riser Tensioner Ropes
Cable Laid Sling
In order to lift today’s mega-structures within the offshore construction industry, technically advanced alternative methods of manufacturing heavy lift capacity slings are required. Franklin Flemish-Lock cable laid slings have technical advantages which include no reduction on the termination efficiency. By specialised methods in producing Franklin Flemish Lock terminations, our cable laid slings have superior lifting capacity.
Downloads
Flemish-lock Cable Laid Sling
Mechanically swaged Flemish eye
Hand-Spliced Cable Laid Sling
Manually woven tuck splice eye
Cable Laid Grommet Sling
Continuous loop with spliced ends

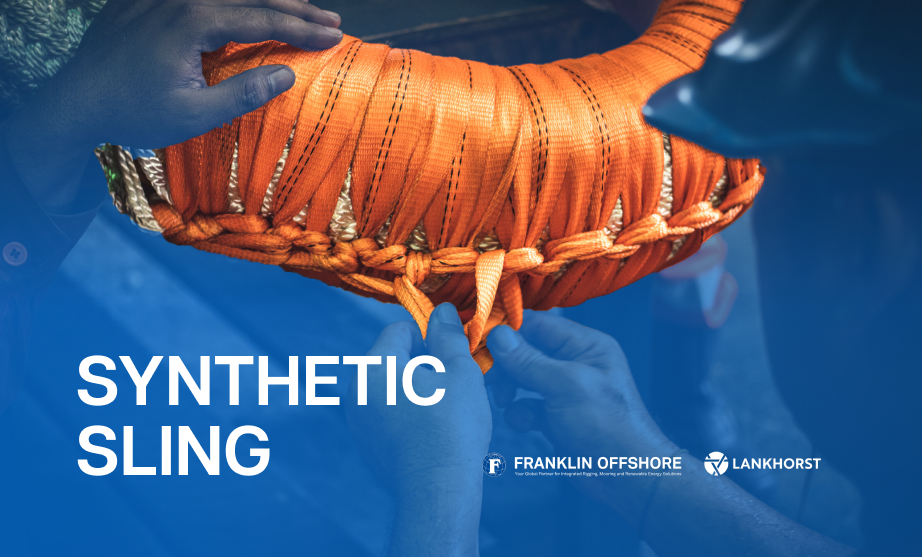

Synthetic Sling
Exclusive distributor of Lankhorst synthetic rope slings
We have a exclusive Co-Operation agreement and we are the sole and exclusive distributor and representative to sell and distribute Lankhorst range of heavy lift synthetic rope slings in South East Asia.
Downloads

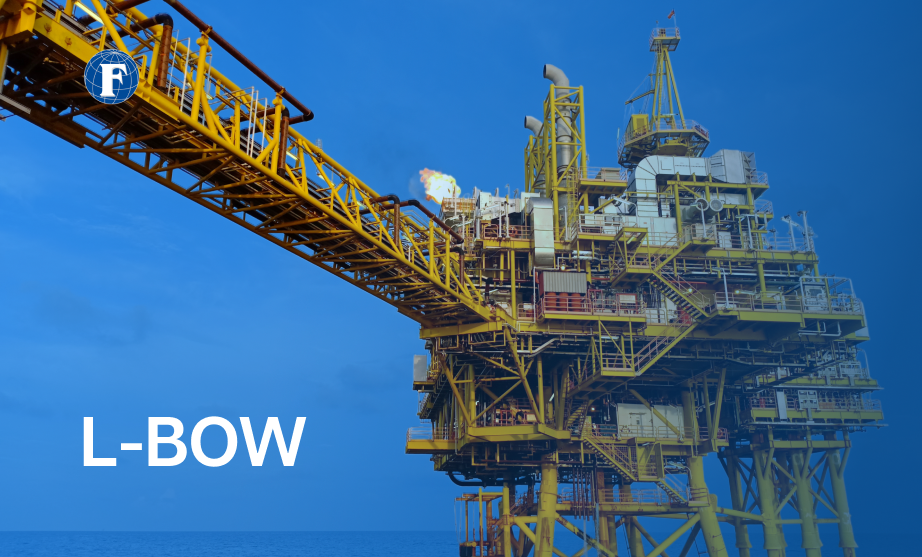

L-Bow
The L-BOW is specifically designed and has a very compact footprint on the deck of the operating vessel. However, once in operation, the L-BOW has a reach of 15-21 metres. The gangway has an elevation of 6 metres (20º) up or down to create a large operational envelope to assist in height difference between multiple targets.
Downloads
Inspection
At Franklin Offshore, our inspection personnel conduct inspection in accordance with each client’s management systems or in compliance with Lifting Operations and Lifting Equipment Regulations (LOLER). This includes all types of cranes and other lifting equipments used in the oil and gas, marine and shipping, petrochemical, and construction industries. Examinations and inspections cover fixed, portable, and loose lifting equipment in order to ensure that the unit of equipment is inspected and certified fit for use. In general inspection surveys, equipment registry and certificates are in compliance with LOLER and other international statutory regulations.
Inspection services we hold
Rope Inspection
E-Mag Rope Inspection
Anchor Chain Inspection
Inspection & Re-certification
Fabrication
We complement our rigging and mooring business with our fabrication services that includes project management, engineering design, procurement, steel work, piping, E&I, testing and commissioning. With our waterfront fabrication facility this provides the competitive edge to undertake large scale projects in terms of mass and size without any technical limitation on the delivery of the finished product.
ISO 9001
Quality Management Systems
OHSAS 18001
Health and Safety
QHSE Management
Quality, Health, Safety, and Environment
01
Temporary Mooring
Franklin Mooring Services is the global leader in the supply of integrated solutions for temporary moorings. Regardless of water depth, as well as mooring and component requirements, we are able to provide high quality solutions that are comprehensive, customisable, and cost-effective for you.
Conventional and permanent mooring
Engineering FEED studies
Fabrication
Installation, engineering, crew and supervision
Maintenance, repair and replacement
Rig move
Design and engineering
Equipment rental and sale
Initial feasibility studies
Mooring analysis
Recovery
Riser analysis
02
Permanent Mooring
We provide a wide range of integrated permanent mooring services and solutions. With a wealth of knowledge and experience, as well as resources to support our projects that range from mooring in shallow waters to offshore mooring in deep waters, our multi-disciplined project management department is the best in getting the job done.
Engineering
Installation
Supply of installation equipment
Selection of vessel mooring system components
Fabrication
Project management and planning
Service inspection and maintenance
Mooring & riser analysis
Selection and optimisation of mooring system
Design & engineer of mooring system
Provision of all mooring equipment & installation aids
Provision of all personnel for installation
For MODU/FPSO/FPU/DTB or similar vessels
Rental
We design and fabricate specialised installation aids for the handling and installation of steel wire rope, rigging and mooring equipment. Our equipment is available for direct purchase or project specific rental. Our comprehensive list of equipment includes:
Spreader Bars
Rigging Lofts
Rigging Blocks
ROV Hooks
Hydraulic Pin Release Shackles
Spooling Machines
Winches
400 Tonne Winch
500 Tonne Chain Tensioner
400 Tonne Linear Winch
Hub (Under Roller Spooler)
Track Tensioner
Pile Guidance Frames
Testing
Meet MERLON 2,300 Tonne twin-ram hydraulic test bed that’s ready for loading testing, hold testing, and destructive testing. Upon completion of each test, a complete report is issued.
01
Load Testing
Meet MERLON 2,300 Tonne twin-ram hydraulic test bed that’s ready for loading testing, hold testing, and destructive testing. Upon completion of each test, a complete report is issued.
02
FAT, SIT and Offshore Execution
We offer valuable insights and suggestions to optimize the design for efficient and cost-effective fabrication.
03
System Integration Testing
We meticulously fabricate your engineered platform and steel structural components with precision and adherence to the highest industry standards.
Rope Installation
We have a wealth of international experience in the instalation of new ropes for new cranes. Our installation superintendents are responsible for the installation procedures – including pre-work JSA reviews. Our spooling equipment is robust and has sufficient back tension to ensure that your ropes are installed in full accordance with manufacturers’ requirements.
Rope Installation services we hold
Crane rope installation
Spooling, Socketing
Sling installation
Chain Installation
Training
Everyone seeks a better life-improvement and development. The best way to get personnel growth is by acquiring new skills and knowledge. Franklin Offshore provides intensive international training to our staff and clients. Training can be carried out from our Training Academy, or at your location onshore and offshore.
